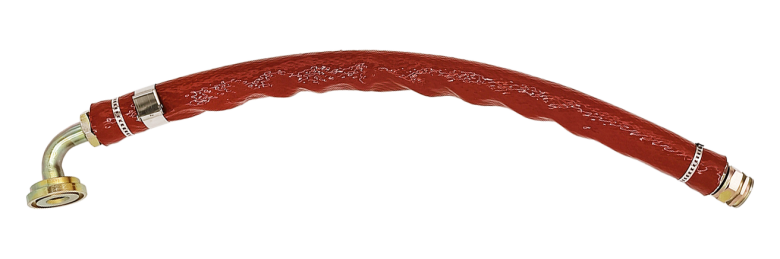

產品介紹 Description
| INNER CONVEYING TUBE MATERIAL | RUBBER, BUNA-N | MEASURING METHOD AND LENGTH |
27.000 INCHES NOMINAL WORKING |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL | OUTSIDE DIAMETER |
0.953 INCHES NOMINAL |

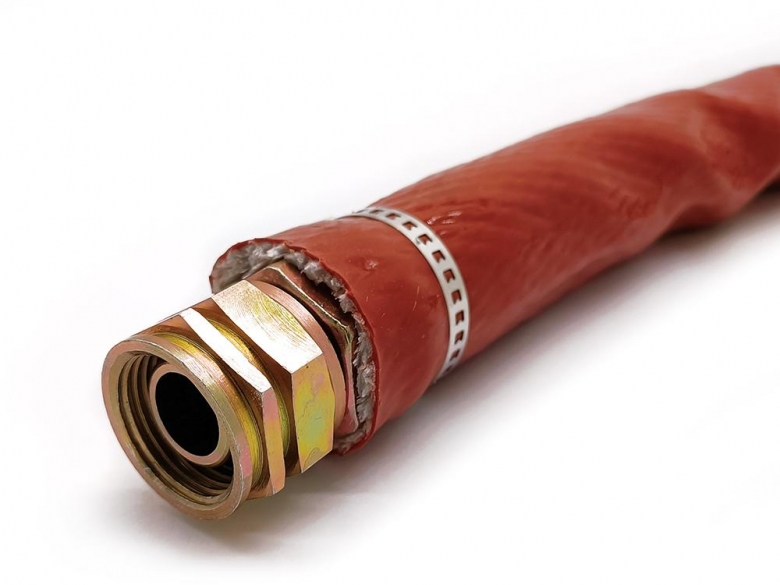

| FIRST END CONNECTION TYPE | 13.625 INCHES NOMINAL | FIRST END STYLE DESIGNATOR |
C12 SWIVEL NUT, FLARELESS |
| FIRST END SEAT ANGLE IN DEG | 37.0 | FIRST END NOMINAL THREAD SIZE |
1.062 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 | ||

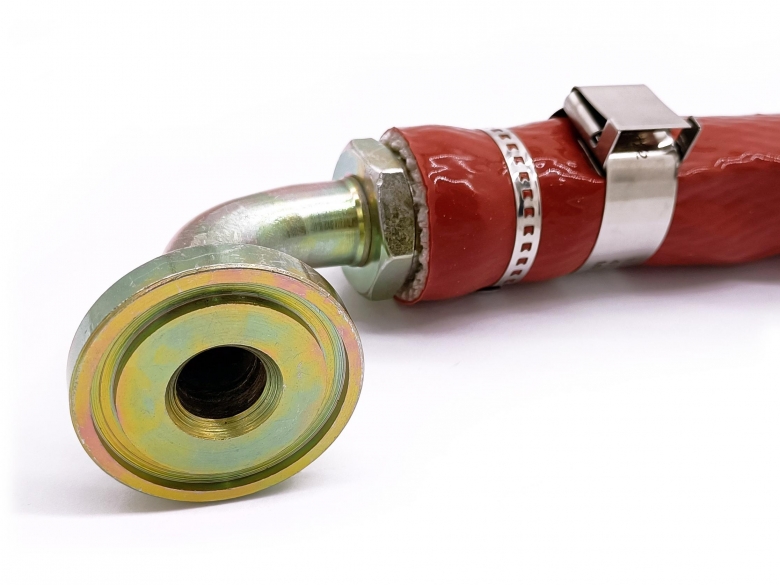

| SECOND END CONNECTION TYPE | PLAIN FACE FLANGE | SECOND END STYLE DESIGNATOR |
G3 PLAIN SWIVEL W/GASKET GROOVE |
| SECOND END FLANGE CONSTRUCTION |
SPLIT |
SECOND END FLANGE SHAPE STYLE |
1 DOUBLE OVAL |
| SECOND END BOLT HOLE DIAMETER |
0.410 INCHES NOMINAL |
SECOND END FLOW ANGLE IN DEG | 90.0 |
| MAXIMUM OPERATING PRESSURE | 750.0 POUNDS PER SQUARE INCH | HYDROSTATIC TEST PRESSURE | 1500.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
   |
||||
|
