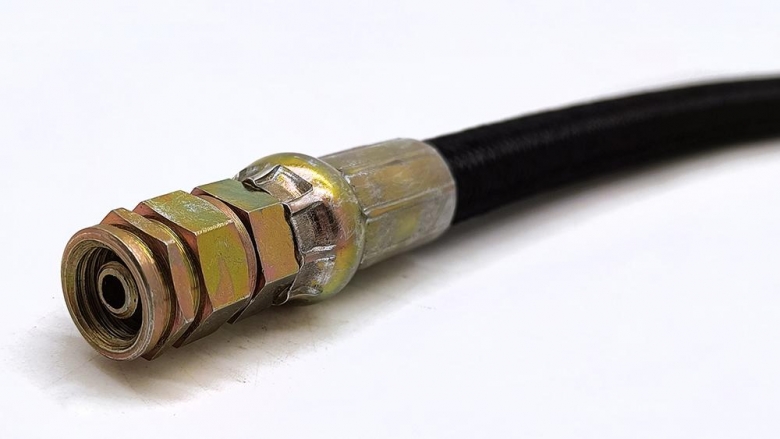

產品介紹 Description
| INNER CONVEYING TUBE MATERIAL | RUBBER, BUNA-N | LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED COTTON CORD 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER RUBBER IMPREGNATED COTTON FABRIC |
| INSIDE DIAMETER | 0.188 INCHES NOMINAL | OUTSIDE DIAMETER | 0.484 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 45.000 INCHES NOMINAL WORKING | TEMP RATING | -65.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, CORROSION RESISTING | FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH | HYDROSTATIC TEST PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
